LC-H1橫吊
* Suitable for lifting non-bending steel plates and transportation them in horizontal position.* For hoisting steel plates up to hardness 37RC(345HB).
* It is manufactured by low-carbon hi-quality alloy steel forging.
* The rated load refers to the clamp be used in pairs, to lift an included angle is when 60 degrees permits the hoisting up the maximum weight.
* Always must be used in pairs.
* To lift long steel plates must be lifting with a balance.
* Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
* Each plate grip is subject to test load at 2X rated load capacity.
* Don't overload to use.
* Please read owner's manual before using the clamp.

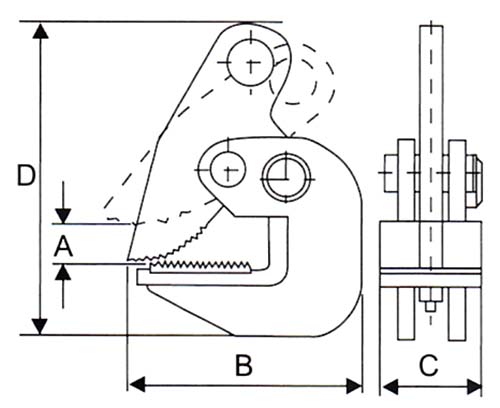

| 參數表 LC-H1 TYPE LIFTING CLAMP | ||||
| 型號 | 額定載荷 | 實驗載荷 | 鉗口寬度 | 凈重 |
| Model | Rated Capacity(t) | Test Load(t) | Jaw opening(mm) | N.W(Kg) |
| 0.75T | 0.75 | 1.5 | 0-25 | 2.4 |
| 1T | 1 | 2 | 0-30 | 3.4 |
| 2T | 2 | 4 | 0-35 | 5.4 |
| 3T | 3 | 6 | 0-40 | 6 |
| 4T | 4 | 8 | 0-45 | 6.3 |
| 5T | 5 | 10 | 0-55 | 7.5 |
