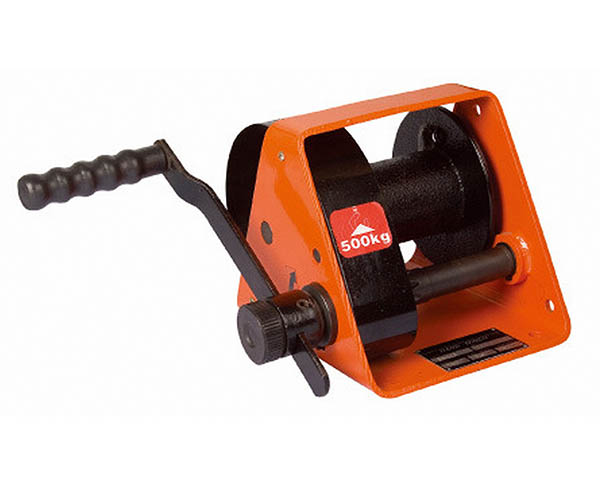

HWG手動絞盤
| HWG Type Hand Winch(For Heavey Duty Purpose) | |||||||
| Type |
S.W.L. (kg) |
For wire rope (mm) |
Length (m) |
No.of layers |
N.W. (kg) |
||
| HWG150 | 150 | 4 | 22 | 6 | 8 | ||
| HWG300 | 300 | 5 | 40 | 6 | 16 | ||
| HWG500 | 500 | 6.8 | 25 | 4 | 17 | ||
| HWG1000 | 1000 | 9 | 35 | 4 | 38 | ||
| HWG2000 | 2000 | 13 | 30 | 3 | 60 | ||

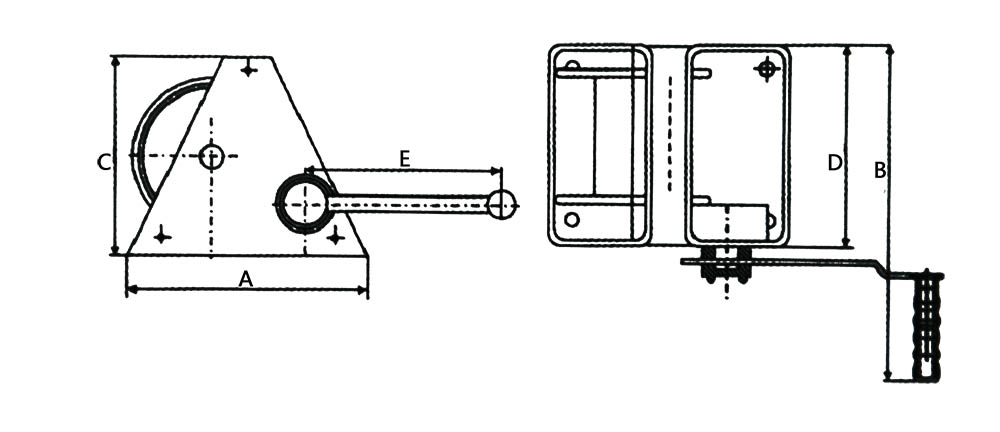

| Type | A | B | C | D | E | Φ x (m) | Speed |
| HWG150 | 180 | 325 | 150 | 150 | 350 | 4x22 | 1 |
| HWG300 | 240 | 385 | 200 | 200 | 250 | 5x40 | 1 |
| HWG500 | 240 | 385 | 200 | 200 | 250 | 6.8x20 | 1 |
| HWG1000 | 412 | 485 | 300 | 300 | 350 | 9x35 | 1 |
| HWG2000 | 500 | 585 | 325 | 405 | 350 | 13x30 | 1 |
