AC手動(dòng)液壓搬運(yùn)車(chē)
The Hand Parllet tuck is the ideal“storage aid”and“handling partner”for all manual transport tasks over short distance，excellently suitable for use on lorries，in small warehouse and markets ect.
| Model | CBY-AC 2.0 | CBY-AC 2.5 | CBY-AC3.0 |
| Capacity(kg) | 2000 | 2500 | 3000 |
| Min.fork height(mm) | 85/75 | 85/75 | 85/75 |
| Max.fork height(mm) | 195/185 | 195/185 | 195/185 |
| Lifting height(mm) | 110 | 110 | 110 |
| Fork height(mm) | 1150/1220 | 1150/1220 | 1150/1220 |
| Single fork height(mm) | 160 | 160 | 160 |
| Width overall forks(mm) | 550/685 | 550/685 | 550/685 |
| Fork wheel-single(mm) | Φ80X93/74X93 | Φ80X93/74X93 | Φ80X93/74X93 |
| Fork wheel-tandem(mm) | Φ80X70 | Φ80X70 | Φ80X70 |
| Steering wheel(mm) | Φ180X50 | Φ180X50 | Φ180X50 |
| Truck weight(kg) | 73-92 | 73-92 | 73-92 |
| Qty/20 feet container(pcs) | 180/144 | 180/144 | 180/144 |

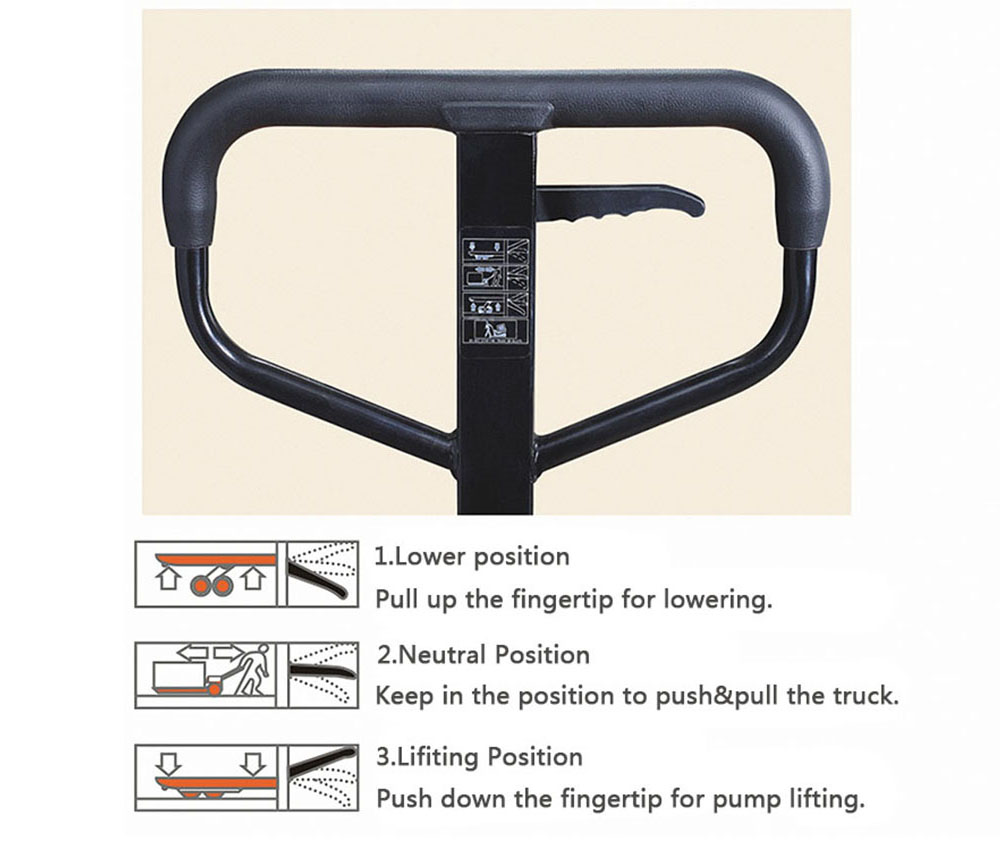

Ergonomic large rubber handle ensures a comfortable hold and easy operation.
handle A
Steering
Easy to maneuver with 210 degrees turning radius. All pivots points are greased ensure excellent maneuverability with effortless steering
Spray finishing
Standard painting system ensures the best power coating and painting quality
Controlled speed
Speed lowering valve can adjust the descent speed freely
Reliable construction
Heavy gauge steel construction，drop forged lift link arms provide available strength and durability.
Easy lowering operation
Foot and hand control the lowering function to ensures easy operation
Overload protection
Excellent and compact pump design with high-pressure relief valve to prevent overload.
Options
Color available in red，yellow，bule and others.
Different fork lengths and widths available.
Obtainable with rubber，nylon or polyurethane steering wheels.
Rollers available in nylon or polyurethane.
Available with Handle A and Handle B.
