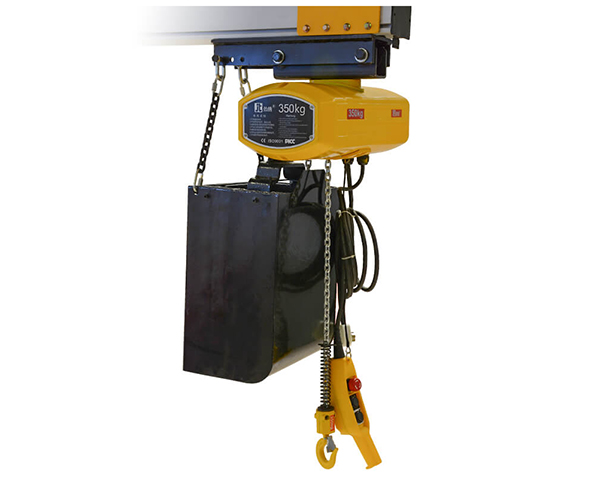

JTHH風電款環鏈電動葫蘆
| JTHH Wind Power Electric Chain Hoist | |||||||||||||||||||||
| Jentan Code | W.L.L(t) | Lifting Speed (m/min) | Hook Dostance (mm) | Power (kw) | Duty Circle (%) | Chain Size (mm) | N.W. (kg) | Extra Weight Per Lift (kg) | Dimensions(mm) | ||||||||||||
| A | B | C | D | E | F | G | H | L | K | M | N | ||||||||||
| Dual Speed | JTHH2J1-0.25AF | 0.25 | 5.3/16 | 439 | 0.3/0.9 | 30 | 5X15 | 33 | 0.56 | 439 | 428 | 229 | 165 | 124 | 235 | 92 | 168 | 35 | 41 | 23 | 27 |
| JTHH2L1-0.32AF | 0.32 | 8/24 | 439 | 0.53/1.6 | 30 | 5X15 | 40 | 0.56 | 439 | 483 | 229 | 165 | 124 | 235 | 92 | 168 | 35 | 41 | 23 | 27 | |
| JTHH2L1-0.35AF | 0.35 | 8/24 | 439 | 0.53/1.6 | 30 | 5X15 | 40 | 0.56 | 439 | 483 | 229 | 165 | 124 | 235 | 92 | 168 | 35 | 41 | 23 | 27 | |
| JTHH2G1-0.5AF | 0.5 | 3.3/10 | 439 | 0.53/1.6 | 40 | 6.3X19 | 38 | 0.86 | 450 | 458 | 229 | 165 | 124 | 235 | 92 | 168 | 40 | 45 | 27 | 30 | |
| JTHH2G1-0.6AF | 0.6 | 3.3/10 | 455 | 0.53/1.6 | 30 | 6.3X19 | 38 | 0.88 | 450 | 458 | 229 | 165 | 124 | 235 | 92 | 168 | 40 | 45 | 27 | 30 | |
| JTHH2G1-0.75BF | 0.75 | 3.3/10 | 545 | 0.53/1.6 | 30 | 7X21 | 59 | 1.09 | 540 | 493 | 294 | 193 | 171 | 247 | 114 | 197 | 45 | 49 | 31 | 36 | |
| JTHH2G1-0.8BF | 0.8 | 3.3/10 | 545 | 0.53/1.6 | 30 | 7X21 | 59 | 1.09 | 540 | 493 | 294 | 193 | 171 | 247 | 114 | 197 | 45 | 49 | 31 | 36 | |
